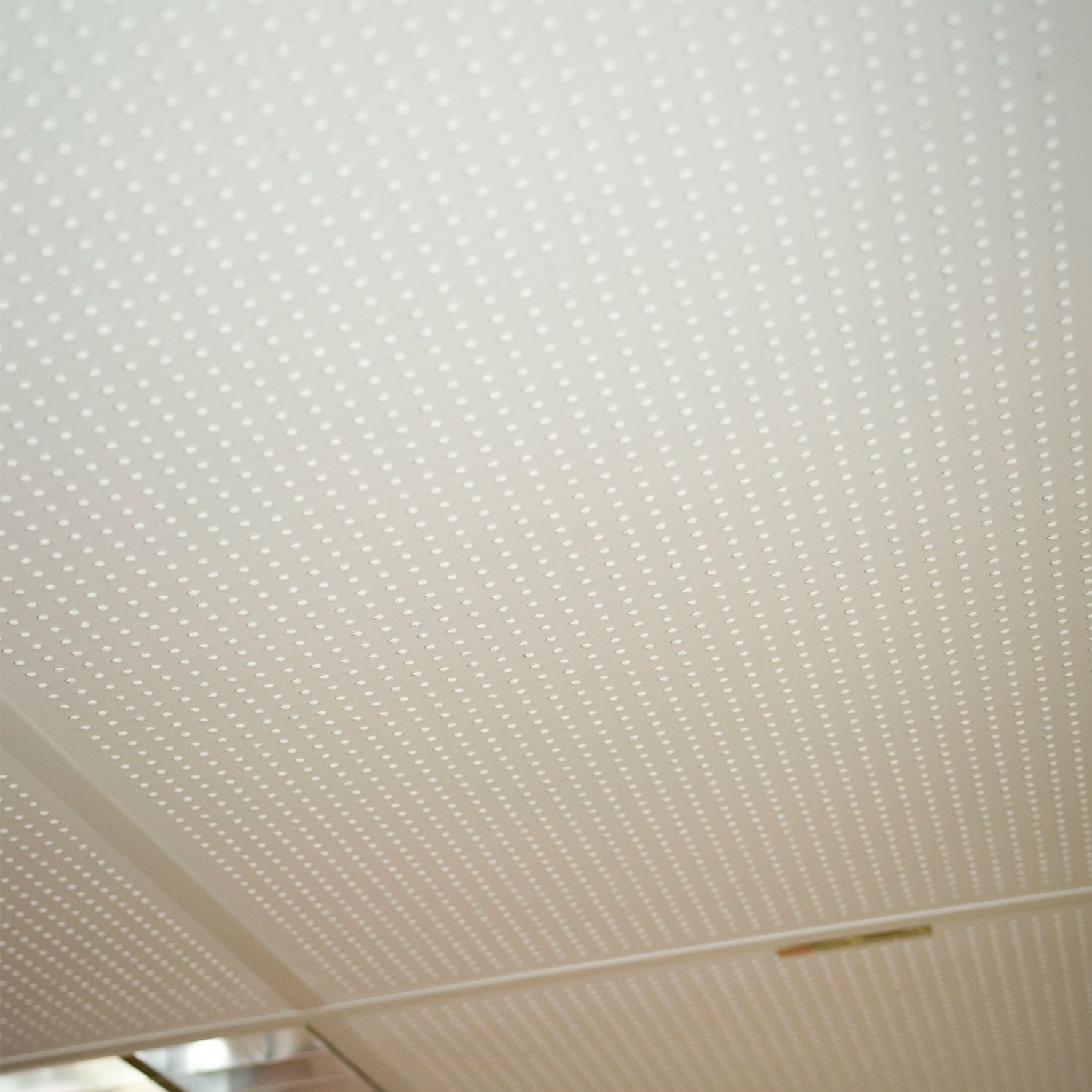

Perforated Ceiling Tiles
Product Overview
Perforated Ceiling Tiles are squared edged, 13mm thick and available as 1200mm x 600mm tiles to suit common exposed grid systems. The acoustic properties of the tiles are achieved by a regular grid of 6mm, full depth holes to approximately 10% of the panel area. This, combined with suitable insulation, provides a medium level of sound absorption to reduce echoes and reverberation. The edges of the tiles are cut square to suit exposed grid ceiling systems. The white vinyl facing is easy to clean.
Typical Applications
Perforated Ceiling Tiles are designed to suit standard suspended grid systems, typically in commercial construction. Suitable for a range of commercial environments where sound absorption is requires, Perforated Ceiling Tiles are often used in shopping centres, offices, restaurants, libraries and galleries.
Perforated Ceiling Tiles are available in the following size:
| Thickness | 13mm |
| Width | 600mm |
| Length | 1200mm |
Product Manufacture
Perforated Ceiling Tiles are manufactured for CSR Gyprock in Australia to stringent product specifications.
Product Handling
Storage: Protect from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data SheetsĀ are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Physical Properties
| Nominal Weight | 10kg/m2 |
| Fire Hazard assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) < 250 m2/kg
Group Number 1 Report Reference WFRA 45759 |
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Supatone may be used wherever a non-combustible material is required by the Code. |
