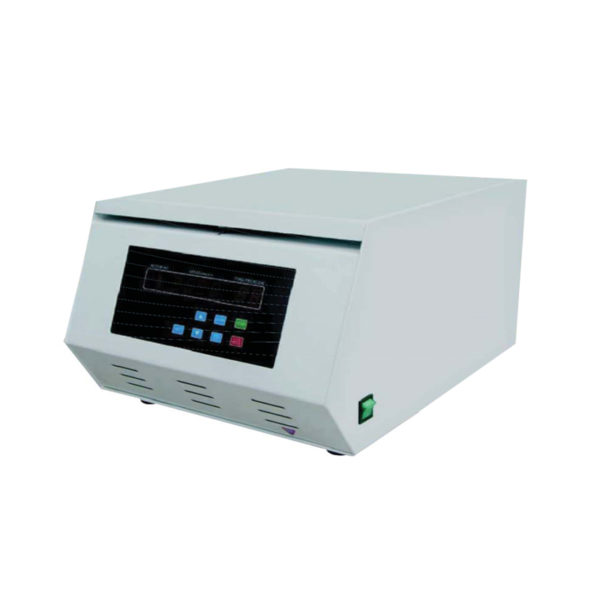

Bench Top Centrifuge 5000 r.p.m. (Brush less Motor)
- General Purpose Laboratory Centrifuge Machine
- Microprocessor based
- Heavy duty C.R.C construction finished with powder coating
- Fitted with brushless automatic balanced motor
- Digital timer of range 0-99minutes
- Digital Speed Indicator
- Programmable speed regulator
- Electronic Safety lid lock
- Imbalance detector
Machines comes without rotor because individual customer require rotor as per his specific requirement hence price of rotors is quoted seperately (At extra cost)
| Rotor Type | Rotor Capacity | Speed on Rotor (r.p.m) | R.C.F. on Rotor |
| Swing bucket Rotor | 32 x 15 ml. | 4000 | 2810xg |
Most suitable for Medical Colleges, Clinical Labs, where work load is very high.
Technical Parameter
| Max. Speed | 5000 r/min |
| Max. RCF | 4390xg |
| Motor | Brushless Motor |
| Noise | ≤65dB |
| Power | AC 220V 50 Hz 15A |
| Weight | 35 kg. |
| Dimensions | 530 x 420 x 350 (LxWxH) |
Note: The speed of the machine depends upon the type of rotor being used. If rotor is heavy the speed will reduce as per below mentioned tale.
| Rotor Type | Rotor Capacity | Speed on Rotor (r.p.m) | R.C.F. on Rotor |
| Swing Bucket Rotor | 4 x 100 ml. | 5000 | 4390xg |
| Swing Bucket Rotor | 4 x 50 ml. | 5000 | 4390xg |
| Swing Bucket Rotor | 8 x 50 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 32 x 10 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 32 x 7 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 32 x 7 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 48 x 5 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 72 x 7 ml. | 4000 | 2810xg |
| Swing Bucket Rotor | 4 x 250 ml. | 4000 | 3000xg |

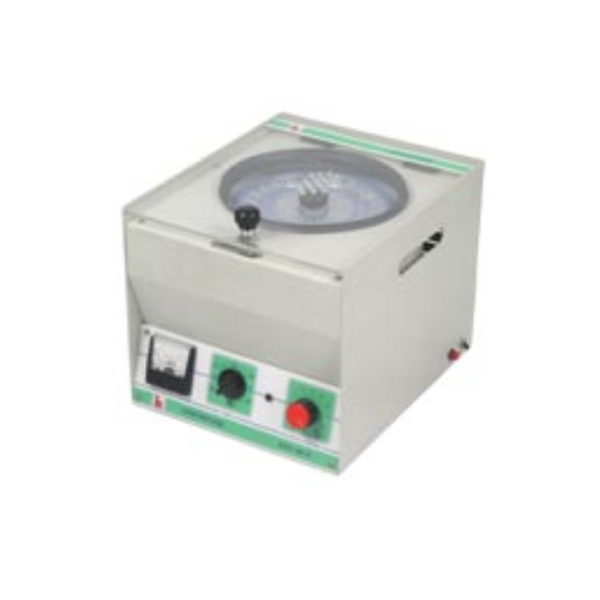

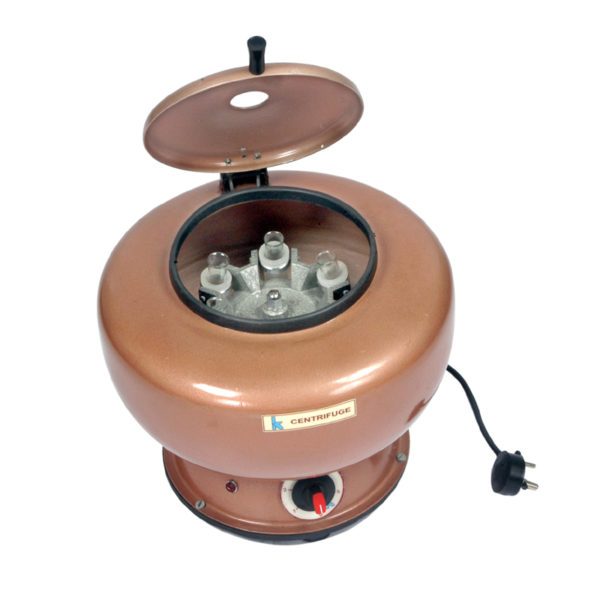

Centrifuge Electric
- Digital Centrifuge
- Electric Centrifuge
- Laboratory Centrifuge
- Centrifuge Normal/ Digital

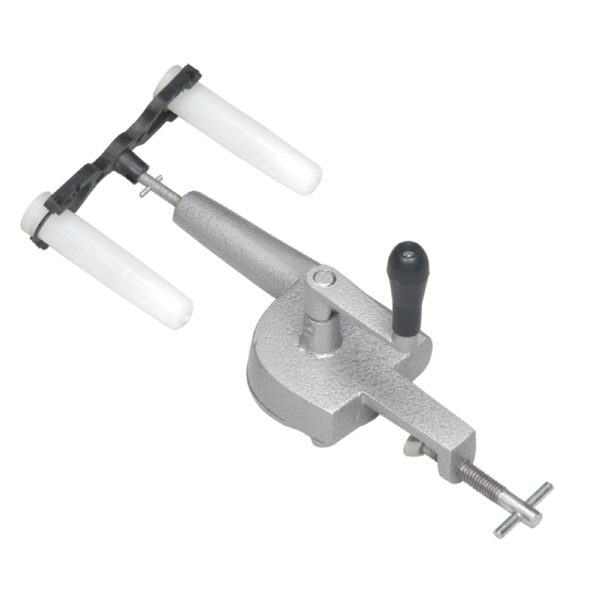

Centrifuge Hand Operated
- Centrifuge Hand Operated
- Hand Centrifuge
- Manual Centrifuge
- Centrifuge Machine
Centrifuge Machine 12 Tube
- Centrifuge Machine 12 Tube
- Laboratory Equipment

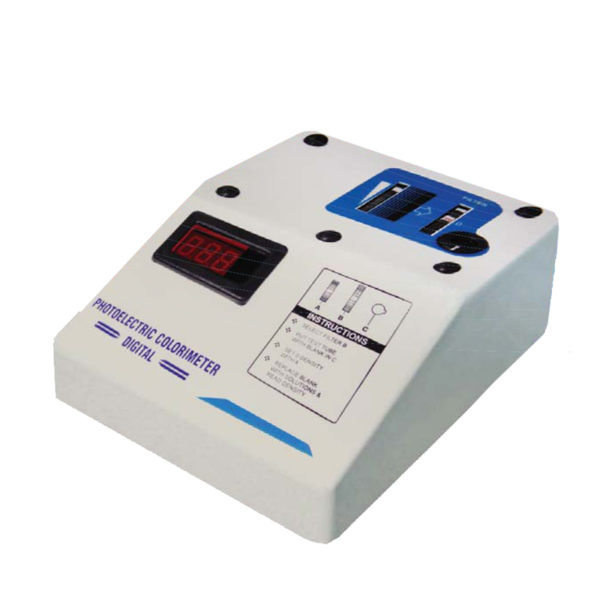

Digital Colorimeter – Photoelectric
- Plastic Injection moulded body.
- Glass Filters – High Quality Imported
- Hermatically sealed, imported photodiode
- Light weight. Attractive design.
Our Model is the finest Photoelectric Colorimeter that combine convenience in operation with high precision & accuracy in analysis. The result in the form of optical density transmission are available on the display. Eight imported optical glass filters covering complete visible range of 400-700mm are mounted on a rotating disc. Its all imported filters makes it highly accurate as per international standards. Highly sensitive photo sensor and use of latest IC technology makes the instruments highly rugged, and economical in maintenance. A minimum sample volume of 1 ml is required to carery out the analysis. Provision has been made to switch on the lamp source only when required, there by increasing the life of the photodiode.
| Filters | 8(All High Quality Optical Glass Filters) |
| Filters Range | 400,480,510,520,540,580,620,700 (mm) |
| Min. Volume | 1ml. |
| Display | 2½ digit LED |
| Range | 400-700mm |
| Output OD | 0 to 1.99 |
| Resolution | OD: 0.01 |
| Accuracy | 0.5% FS ± 1 Digit |
| Detector | Hermetically Sealed Imported Photodiode |
| Light Source | Imported white LED |
| Power | 230V ± 10% AC, 50 Hz |
| Dimensions | L-33cm. x W-30cm. x H-16.5cm. (approx.) |
| Weight | 1.5 Kg. Approx. |
| Accessories | (i) Test Tube-5 (ii) Test Tube Stand (iii) Dust Cover-1 (iv) Spare Light Source-2 (v) Instruction Manual-1 |

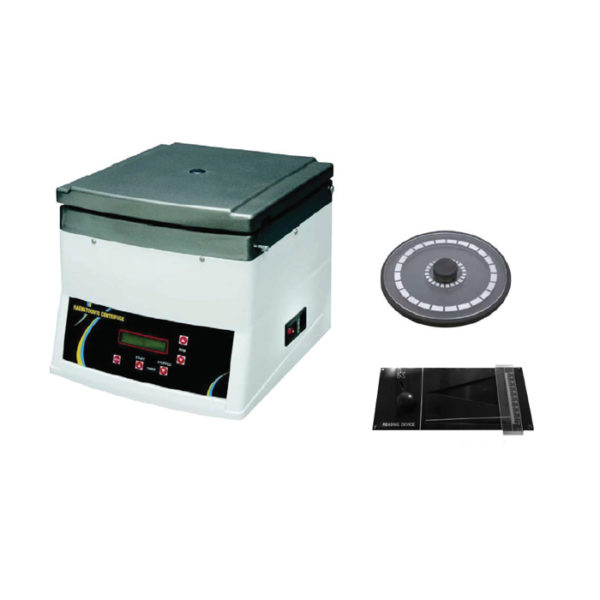

Haematocrite Centrifuge 13000 r.p.m.
- Haematocrite Centrifuge Machine, Max. speed 13300 r.p.m
- Compact body which is made of plastic injection moulded.
- Inner safety bowl made of stainless steel
- Fitted with well balance universal motor having long life with imported carbons
- Digital display shows Set time/ Run time /R.P.M.
- Microprocessor based Digital timer of range 0-15 min with LCD display.
- Preset speed controls thru microprocessor from 2000 to 13300 r.p.m.
- Main supply 110/230V , 50 Hz
Supply completed with following accessories:
- Micro Hematocrite rotor to accommodate 24 capillaries of 75mm x 1mm or 12 capillaries.
- Heparinised capillary tubes 75mm long x 1mm bore (Pack of 100 Nos.)
- Non-Heparinised capillary tubes 75mm long x 1mm bore (Pack of 100 Nos.)
- Reading device
- Sealing wax- 1tray
Dimension of Machine: L=290mm, W-270mm, H-240mm
Weight of Machine: 9.5kg. approx.
Dimension of box: L-355mm x W355 x H-340mm
Weight of Box: 11kg. approx.

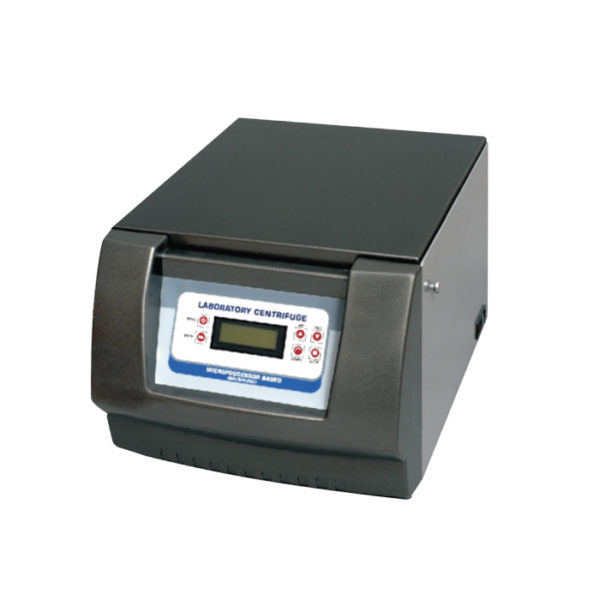

Laboratory Centrifuge Universal Brush less
● High speed, high capacity bench top, Laboratory Centrifuge Machine, Microprocessor based
● Heavy duty C.R.C. construction finished with powder coating
● Stainless Steel centrifugal bowl for extra protection and easy cleaning.
● Fitted with well balanced brushless motor with electronic drive. Digital timer 0-99 minutes.
● 4 lines, 20 characters. LCD Display for set time, run time, set and run rpm, rcf and rotor identification.
● 50 programmes can be stored in memory and automatic rotor identification on display.
● Additional electronic lid lock who does not allow to open lid when machine is running and opens automatically after centrifuge time is over.
● Dynamic brake (automatic) and imbalance detector are provided.
● Fast spin option.
● Selection of 3 acceleration + 4 deceleration profile.
● Programmable Speed Regulator from 2000 to 15000 in interval of 100 rpm
● Last test parameter recall and displays automatically on LCD
● Supply completed with , instruction manual, cord & plug to work on 120-240V 50/60Hz
● Machine comes without rotor heads.
● Very stable
● No vibrations
● Motor fitted on anti vibration springs supported with rubber covering from inside and out side.
Technical Specifications:
| Max. Speed | 15000Rpm |
| Max. RCF ‘g’ | 25314 |
| Max. Tube Size | 100 ml |
| Max. Capacity | 400 ml |
| W x D x H mm | 400 x 500 x 455 |
Machine comes with one rotor head as under
| Capacity | 12x15ml |
| Type of Rotor | Angular |
| Type of Container | Plastic |
| Speed RPM | 15000 |
| RCF ‘g’ | 25314 |

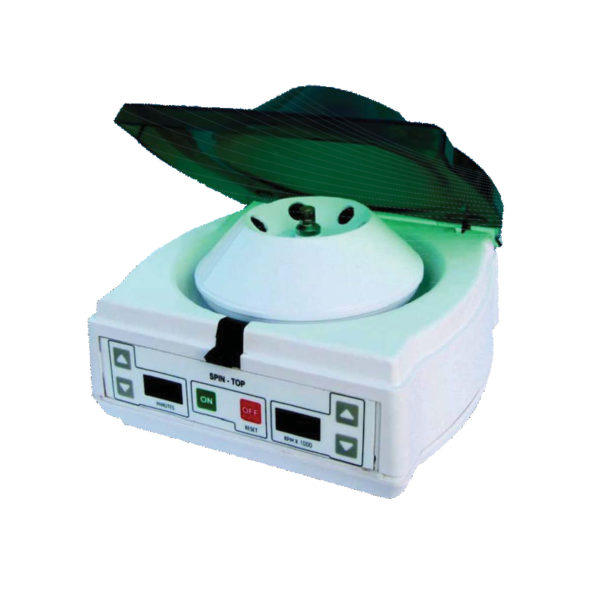

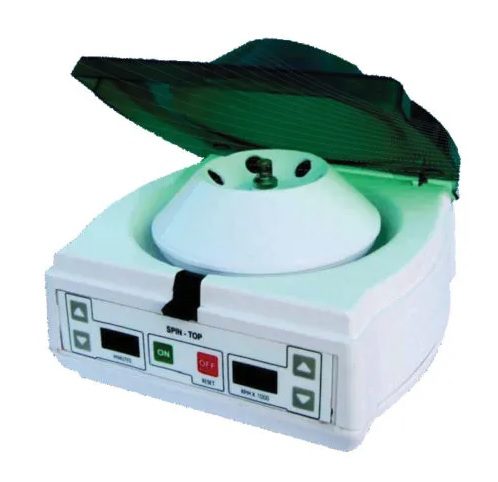

Mini Centrifuge – Max Speed 10000 rpm
Model: Spin-Top
Micro processor controlled, Micro-Centrifuge machine (Mini Centrifuge) speed 1000 to 10000 r.p.m.
Technical Specifications
R.P.M. in step of 1000 rpm. Fitted with 0-15 minute electronic digital timer. Supply completed with 2 standard rotors means
- 6 micro centrifuge of 1.5m1 capacity (Kay-01)
- 12 micro centrifuge tubes of 0.5m1 capacity (Kay-02) To work on 220 volts 50Hz AC
Spare Rotor at extra cost :
| Capacity | Packing |
| 6x 1.5 ml. | tubes : 1 |
| 12x 0.5 ml. | tubes : 1 |
Technical Data:
| Size R.P.M | Weight RCF (x g) |
| 1000 | 56 |
| 2000 | 223 |
| 3000 | 503 |
| 4000 | 894 |
| 5000 | 1396 |
| 6000 | 2011 |
| 7000 | 2737 |
| 8000 | 3575 |
| 9000 | 4524 |
| 10000 | 5585 |
Features :
- Quiet & reliable
- Small foot print
- Built in power supply
- Digital display of time & RPM
- High quality brushless motor
- High speed MIcro Centrifuge Max R.P.M. 16000
- Heavy duty plastic injection moulded body.
- Stainless Steel protection bowl.
- Fitted with well balance universal motor having long life with inported carbons.
- Microprocessor based Digital Timer of range 0-15 min. with LCD display.
- Preset speed controls thru microprocessor from 2000 to 16000r.p.m.
- Digital display shows Set Time/Run Time/R.P.M.
Supply completed with following accessories:
- Rotor Head to accommodate 12 eppendorf (Centrifuge Tubes with cover) of 1.5ml/2ml (12 x 1.5/2ml)
- Reduction adopters for 1.5ml eppendorf (MIcro Centrifuge Tubes)
- Head Puller, Spanner, Dust cover, Instruction manual, Cord & plug to work on 220 volts 50 Hz A.C.
Optional at extra cost:
- Rotor head to accomodate 24 micro tubes.
- Any other size of rotor to accommodate micro-centrifuge can be supplied at customer’s requirements
| Dimension of Machine : | L=290mm, W=270mm, H=240mm |
| Weight of Machine: | 9.5kg. approx. |
| Dimension of box: | L-355mm x W355 x H-340mm |
| Weight of Box: | 11kg. approx. |

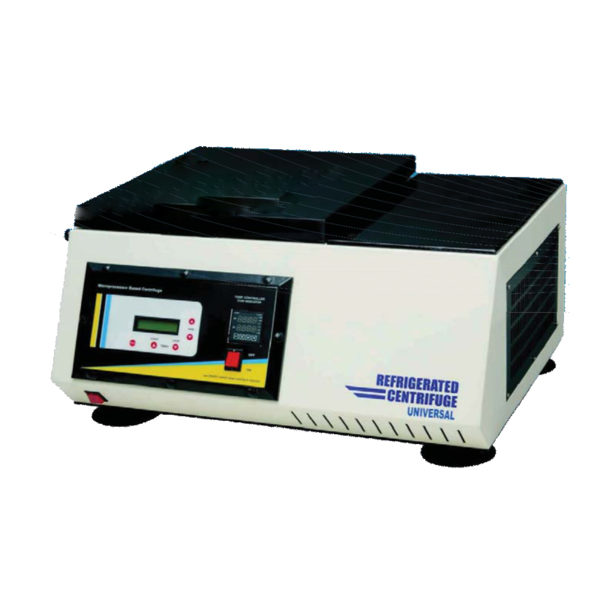

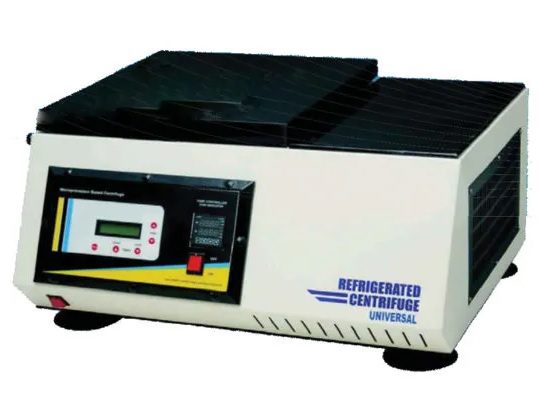

Refrigerator Centrifuge Machine All Purpose 16000 r.p.m.
- Table top centrifuge.
- Compact and elegant design.
- Fitted with vacuum feet.
- CFC Free refrigerant
- Centrifuge bowl made of St. Steel.
- Stable with no vibration.
- Table Top, Excellent Design with Temp. range from room temperature to minus 8°C is controlled by digital temp. controller cum indicator. Maximum Speed 16000 R.P.M. approx. on load of 1.5ml/2ml head.
- Heavy duty CRC construction furnished with powder coating.
- Fitted with well balance universal motor having long life inported carbons.
- MIcroprocessor based Digital Timer of range 0-15 min. with LCD display.
- Preset speed controls thru microprocessor from 2000 to 16000 r.p.m. but speed of machine depends upon size of rotor, details is given in below mention table
- Digital display shows Set Time/Run Time/R.P.M.
- Supply is completed with instruction maual, cord & plug to work on 220 Volts 50Hz single phase A.C. The prices of mentioned size as per customer’s requirement.
- S.S. Bowl Size: 11″ dia
| Type of Rotors | Max. Speed | Qty. |
| Rotor Head 12×1.5/2ml with reduction adopters of | 0.5ml 16000 r.p.m. | 1 |
| Rotor Head 8x15ml | 8000 r.p.m. | 1 |
| Rotor Head 4x50ml | 8000 r.p.m. | 1 |
| Dimension of Machine: | L=27′, W=21″, H=15′ approx | |
| Weight of Machine: | 57 kg. approx |

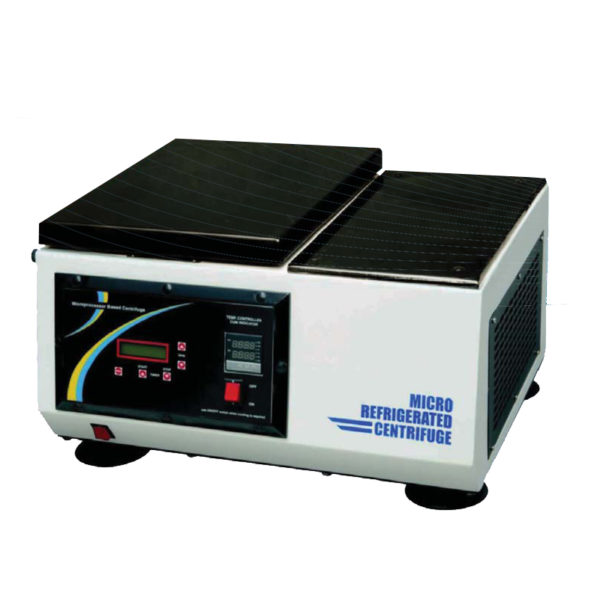

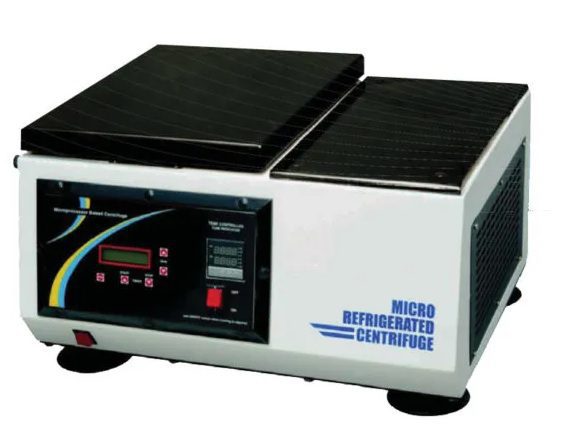

Refrigerator Micro Centrifuge, Digital-16000 r.p.m.
- Microprocessor based table Top Centrifuge
- Compact and Elegant Design
- CFC free refrigerant
- Centrifuge bowl made of st. steel.
- Table Top refrigerated micro centrifuge mchine. The temp from room temp upto minus 8°C is controlled by PID Electronic
- Digital Temp. Controller cum indicator.
- Microprocessor based Digital Timer of range 0-15 min. with LCD display.
- Preset speed controls thru microprocessor from 2000 to 16000 r.p.m.
- Digital display shows Set Time/Run Time /R.P.M.
- S.S. Bowl Size: 9″ dia
Supply complete with following angle rotor heads to accomodate polypropylene micro centrifuge tubes (eppendorf Tubes as well)
| Angle Rotor Head | Qty. |
| Angle Rotor Head, Cap. 12 x 1.5/2ml. | 1 |
| Adopters to accept 1.5ml Eppendrof micro-centrifuge tubes. | 12 |
| Also supplied with head puller, spanner, 12 eppendorf Tubes of 2ml, 1.5ml capacity |
| Dimension of Machine: | L=25″, W=20″, H=14″ approx. |
| Weight of Machine: | 55kg. approx |
